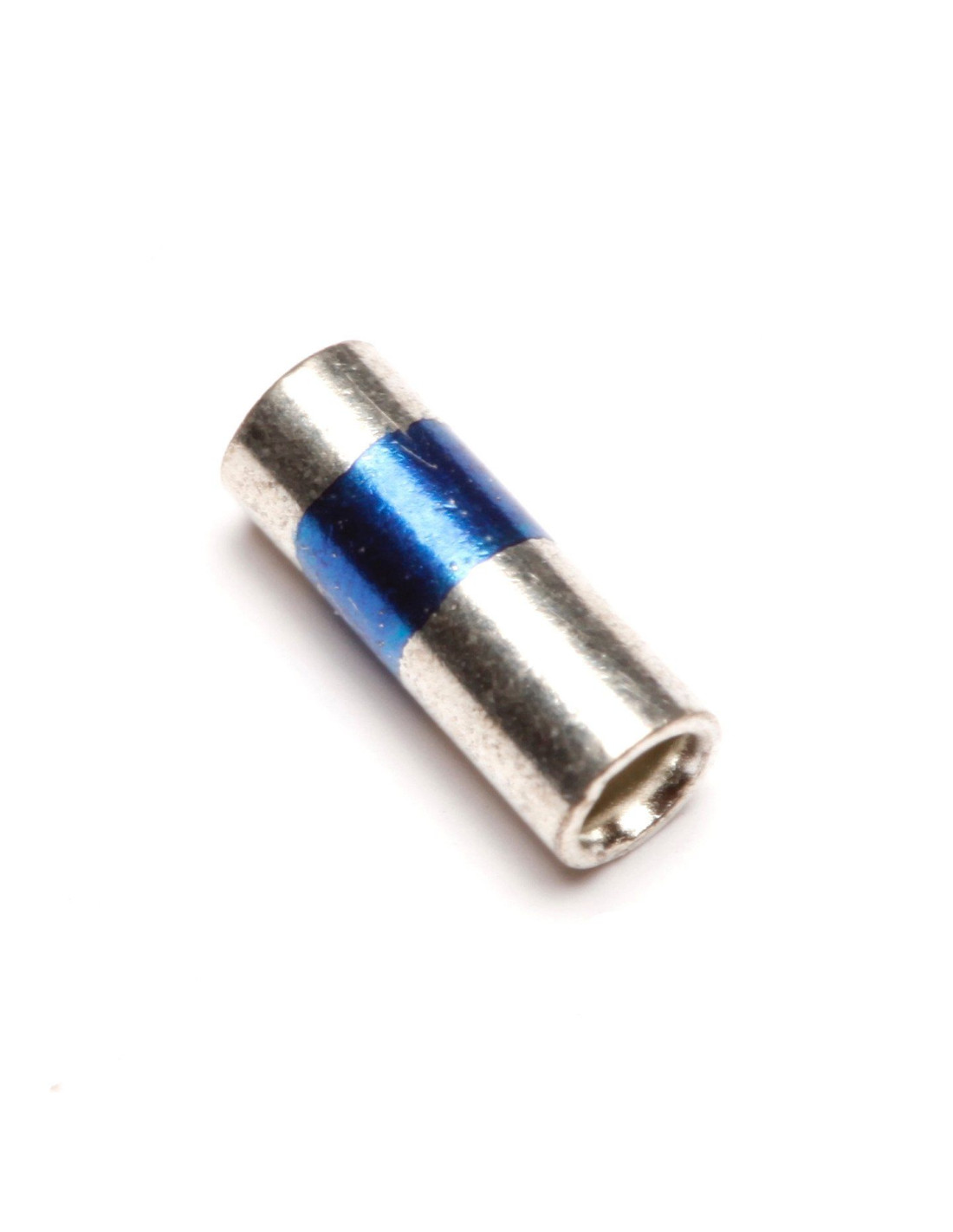

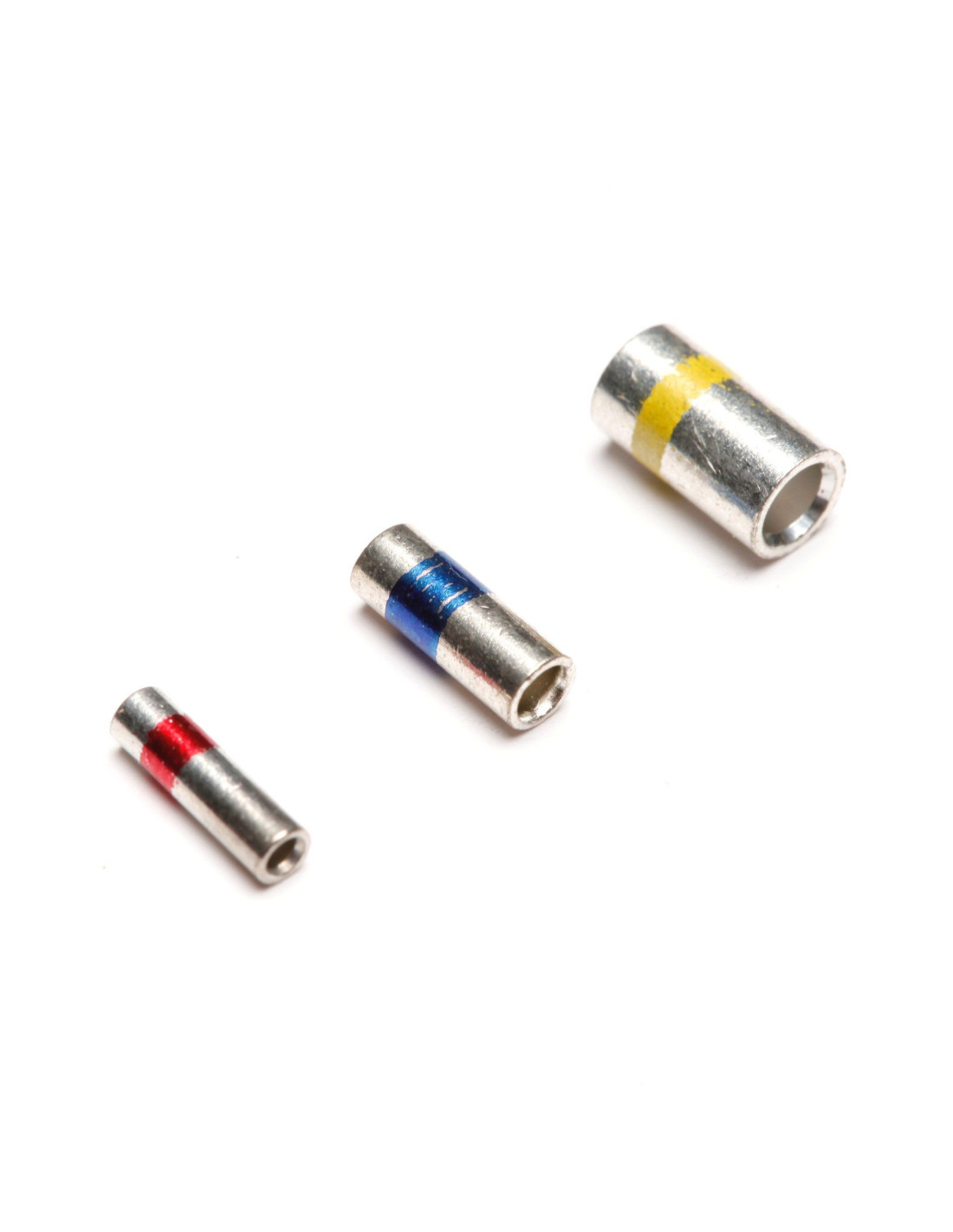

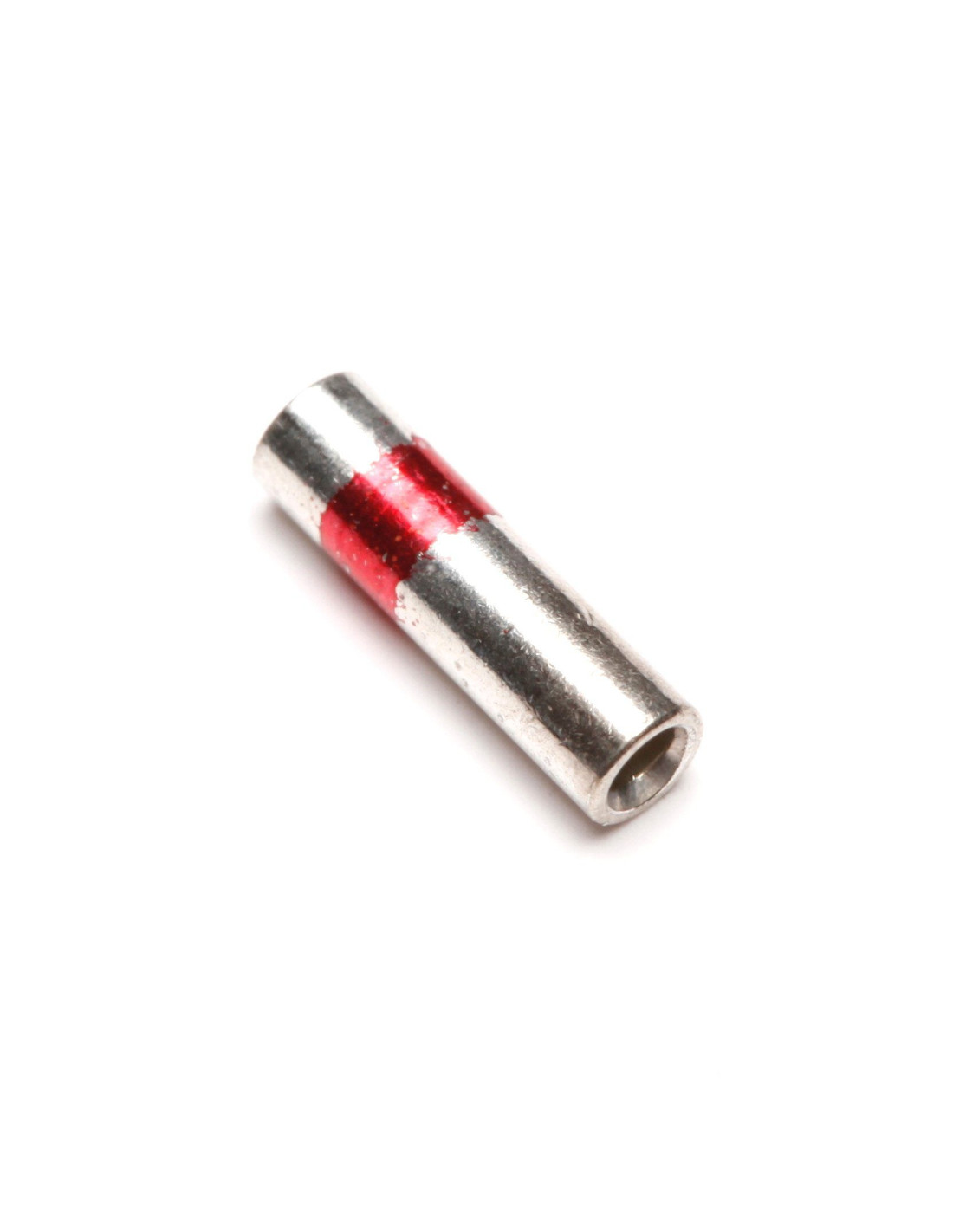

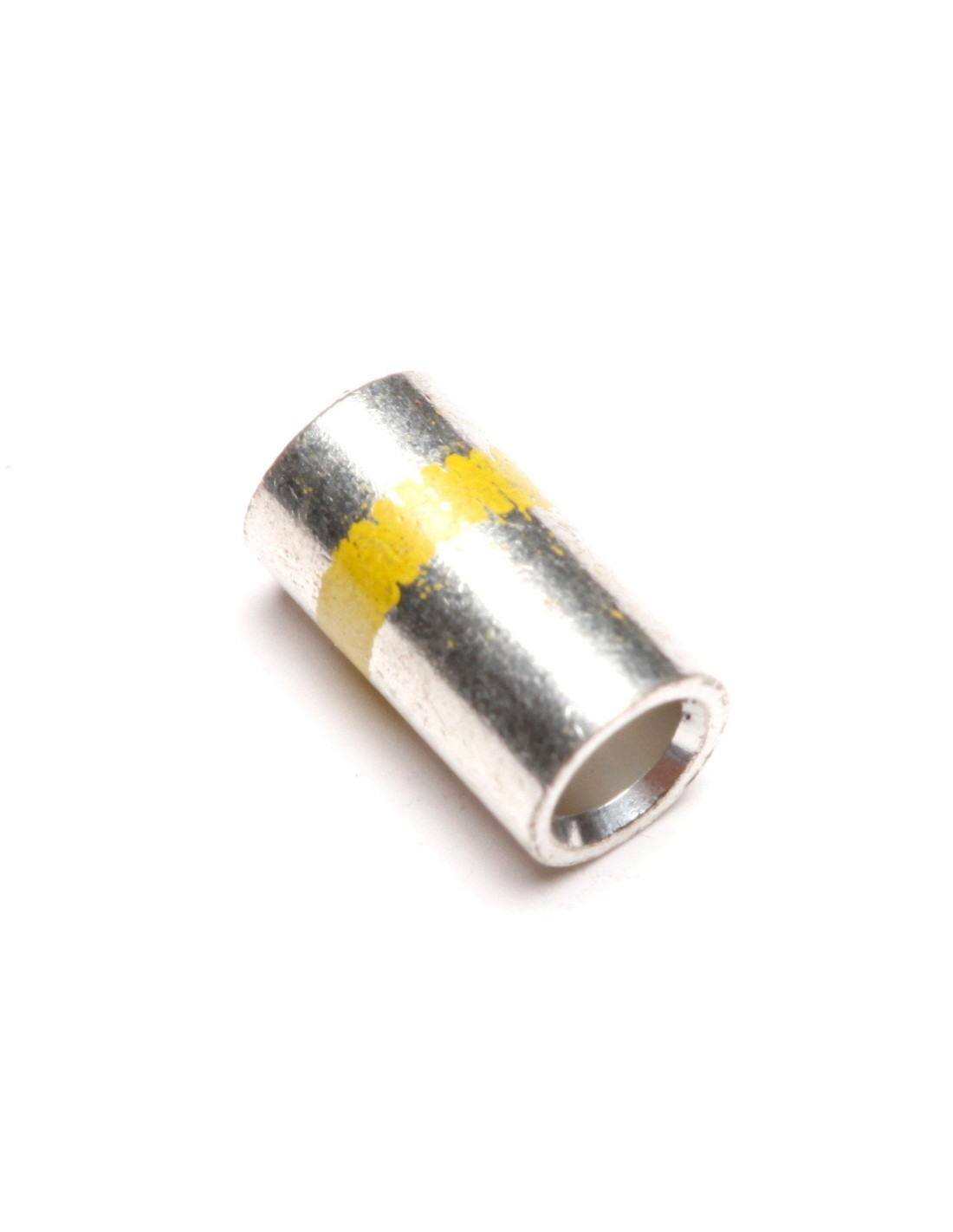

Raychem Mini-Seal Splices
- Tin-Plated Copper Splices
- MIL-S-81824/1 Qualification
- Small size, light weight
- Voltage Drop 6.9 mV at 4.5 A vs 8.1 mV for an equal length of wire
- Tensile Strength Exceeds strength of conductor
- Dielectric Strength 2.5 kV
- Temperature Range -55° to 150°C [-67° to 302°F]
- Crimp Tool M22520/37-01
Use with DMC GMT232 crimp tool
Select the appropriate size from the drop-down list: D-609-03, D-609-04, or D-609-05.
